Description

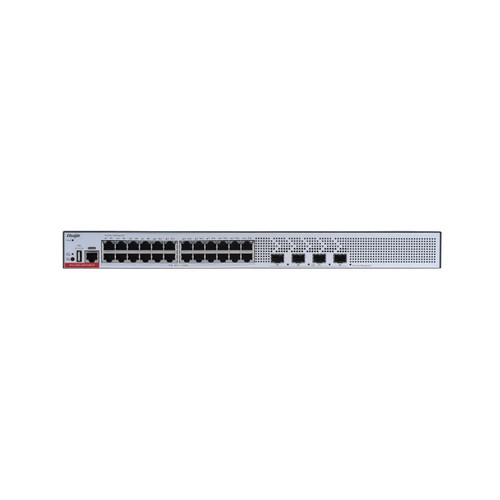

Killer Layer 2+ Access Switch
RG-S2915-24GT4MS-P-L
Compliant with IEEE 802.3af and IEEE 802.3at (PoE+) standards, the switch can reliably supply required power to IP surveillance, teleconference systems, and wireless network.
2.5G Uplink Provides Higher Bandwidth, Faster Speed, and Wider Coverage
The 2.5G uplink optical port breaks the bottleneck of gigabit access, delivering higher bandwidth and faster forwarding rate to support more access terminals.
10 kV Surge Protection
Industry-leading port surge protection capability, strong protection ability, adaptation to harsh environment
Proprietary CPP Enables Stable and Reliable Running and Uninterrupted Connection
The CPU Protection Policy (CPP) feature protects the CPU by controlling the type and size of packets sent to the CPU. This ensures the processing of normal protocol packets and management packets, and fully protects the CPU from unauthorized traffic, malicious attacks and excessive resource consumption.
RLDP - Rapid Link Detection Protocol
Eliminate network loops automatically
Cloud, Make Your Business Easy
- SON, zero touch provisioning to Cloud
- Configure VLANs on Ruijie Cloud APP
- Monitor switch statisticsat anytime anywhere
- Ease of maintenance, saving onsite labor and cost
RG-S2915-24GT4MS-P-L
Compliant with IEEE 802.3af and IEEE 802.3at (PoE+) standards, the switch can reliably supply required power to IP surveillance, teleconference systems, and wireless network.
2.5G Uplink Provides Higher Bandwidth, Faster Speed, and Wider Coverage
The 2.5G uplink optical port breaks the bottleneck of gigabit access, delivering higher bandwidth and faster forwarding rate to support more access terminals.
10 kV Surge Protection
Industry-leading port surge protection capability, strong protection ability, adaptation to harsh environment
Proprietary CPP Enables Stable and Reliable Running and Uninterrupted Connection
The CPU Protection Policy (CPP) feature protects the CPU by controlling the type and size of packets sent to the CPU. This ensures the processing of normal protocol packets and management packets, and fully protects the CPU from unauthorized traffic, malicious attacks and excessive resource consumption.
RLDP - Rapid Link Detection Protocol
Eliminate network loops automatically
Cloud, Make Your Business Easy
- SON, zero touch provisioning to Cloud
- Configure VLANs on Ruijie Cloud APP
- Monitor switch statisticsat anytime anywhere
- Ease of maintenance, saving onsite labor and cost
Key Features
- Basic switching RJ-45 Ethernet ports quantity: 24
- MAC address table: 16000 entries Switching capacity: 68 Gbit/s
- 1U Rack mounting
- AC Power over Ethernet (PoE)
Specifications
| Dimensions Weight | |
|---|---|
| Width | 440 mm |
| Weight | 2800 g |
| Battery | |
| Product colour | Grey |
| Camera | |
| Built-in processor | Yes |
| Processor frequency | 1200 |
| Computer system | |
| Internal memory | 512 |
| Cooling | |
| Noise level | 39 |
| Number of fans | 2 |
| Data transmission | |
| Switching capacity | 68 |
| Design | |
| Form factor | 1U |
| Operating relative humidity (H-H) | 10 - 90 |
| Rack mounting | Yes |
| Storage relative humidity (H-H) | 5 - 95 |
| Features | |
| AC input voltage | 100 - 240 |
| Depth | 292 |
| Flash memory | 64 |
| Height | 43 |
| Package depth | 490 |
| Package height | 390 |
| Package weight | 20930 |
| Package width | 570 |
| Power over Ethernet (PoE) | Yes |
| Security algorithms | HTTPS, SSH |
| VLAN support | Yes |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az |
| Performance | |
| Routing protocols | Ospfv2, Rip, Ripng |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabitethernet 10 100 1000 |
| Power | |
| Power over Ethernet (PoE) power per port | 30 |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping |
Extra Information
Brand:
Ruijie Networks
Width:
440 mm
Weight:
2800 g
Product colour:
Grey
Built-in processor:
Yes
Processor frequency:
1200
Internal memory:
512
Noise level:
39
Number of fans:
2
Switching capacity:
68
Form factor:
1U
Operating relative humidity (H-H):
10 - 90
Rack mounting:
Yes
Storage relative humidity (H-H):
5 - 95
AC input voltage:
100 - 240
Depth:
292
Flash memory:
64
Height:
43
Package depth:
490
Package height:
390
Package weight:
20930
Package width:
570
Power over Ethernet (PoE):
Yes
Security algorithms:
HTTPS, SSH
VLAN support:
Yes
Networking standards:
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az
Routing protocols:
Ospfv2, Rip, Ripng
Basic switching RJ-45 Ethernet ports quantity:
24
Basic switching RJ-45 Ethernet ports type:
Gigabitethernet 10 100 1000
Power over Ethernet (PoE) power per port:
30
DHCP features:
DHCP client, DHCP relay, DHCP server, DHCP snooping
