Description

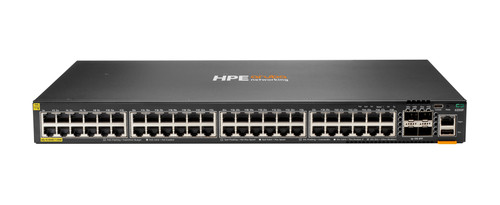

The HPE Aruba Networking CX 6200 Switch Series is a next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable operating system (OS) with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer. Prepare your network for future demands with a powerful Gen7 ASIC that delivers an AI and Wi-Fi 7 ready, non-blocking performance. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks and up to 1440W of PoE to support Internet of Things (IoT) devices such as security cameras and wireless APs.
What is new supporting point:
Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency
Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security
Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)
HPE Aruba Networking Switch Multi-Edit Software supports for automation, configuration and verification
Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing
What is new supporting point:
Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency
Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security
Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)
HPE Aruba Networking Switch Multi-Edit Software supports for automation, configuration and verification
Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing
Key Features
- Managed L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45/USB Type-C
- 10G support
- MAC address table: 32768 entries Switching capacity: 176 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC Power supply included
Specifications
| Dimensions Weight | |
|---|---|
| Width | 43 mm |
| Weight | 5100 g |
| Camera | |
| Built-in processor | Yes |
| Processor frequency | 1800 |
| Computer system | |
| Internal memory | 8000 |
| Processor model | ARM Cortex-A72 |
| Data transmission | |
| Latency (1 Gbps) | 2 |
| Latency (10 Gbps) | 1 |
| Switching capacity | 176 |
| Design | |
| Form factor | 1U |
| Operating relative humidity (H-H) | 5 - 95 |
| Rack mounting | Yes |
| Storage relative humidity (H-H) | 5 - 95 |
| Features | |
| AC input voltage | 200 - 240 |
| Depth | 442 |
| Fan | Fixed fans |
| Flash memory | 16384 |
| Height | 327 |
| I/O ports | 48 x 10/100/1000BASE-T ports 4 x 100M/1/10G SFP+ ports 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port |
| Power over Ethernet (PoE) | No |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| VLAN support | Yes |
| Network | |
| 10G support | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, Ieee802 1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Performance | |
| Physical stacking (units) | 8 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabitethernet 10 100 1000 |
Extra Information
Brand:
HPE
Width:
43 mm
Weight:
5100 g
Built-in processor:
Yes
Processor frequency:
1800
Internal memory:
8000
Processor model:
ARM Cortex-A72
Latency (1 Gbps):
2
Latency (10 Gbps):
1
Switching capacity:
176
Form factor:
1U
Operating relative humidity (H-H):
5 - 95
Rack mounting:
Yes
Storage relative humidity (H-H):
5 - 95
AC input voltage:
200 - 240
Depth:
442
Fan:
Fixed fans
Flash memory:
16384
Height:
327
I/O ports:
48 x 10/100/1000BASE-T ports 4 x 100M/1/10G SFP+ ports 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port
Power over Ethernet (PoE):
No
Quality of Service (QoS) support:
Yes
Switch layer:
L3
Switch type:
Managed
VLAN support:
Yes
10G support:
Yes
Networking standards:
IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, Ieee802 1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Physical stacking (units):
8
Basic switching RJ-45 Ethernet ports quantity:
48
Basic switching RJ-45 Ethernet ports type:
Gigabitethernet 10 100 1000
